Hello, Welcome to FCTEL Technology Co.,Ltd
National service hotline:+086 0571-87007055/56/57 CN

WE ONLY FOCUS ON TRANSMISSION AND ACCESS

Products center

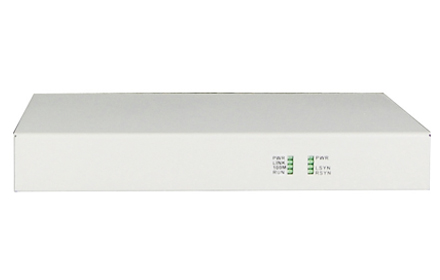

POE2004 4*FE(802.3af) Fiber Media Converter

Type:POE2004-af Message

Description:4 * FE fiber optic transceivers，802.3af POE function，Output power 15.4W

Product Description
              This series is IEEE802.3 Ethernet media converters can achieve four 10 / 100Base-T twisted pair and 10 / 100Base-FX or 10,100Base-T twisted pair and 10,100Base-FX's two kinds of media media conversion or extension of the network between the transmission distance, mainly for (20/40/60/80/120 km) long distance optical fiber transmission network.
           IEEE802.3af Power over Ethernet ports to provide support through a wireless access point power Category 5 Ethernet cable (AP) or IP phones and other devices.
Functional Properties
? automatically adapt to 10Mbps and 100Mbps environment, easy to upgrade the network;
? device provides four Ethernet ports, an Ethernet optical interface
? PSE power company for Ti chip, high stability;
? Ethernet port supports standard IEEE802.3af Power
? Power over Ethernet ports for maximum power 15.4W
? support full and half duplex network communication, with auto-negotiation capability;

? VLAN support the transmission of long packets can support IEEE802.10 protocol products matching switches

       used to support up to 1916-byte Ethernet packets;

? Support UTP port cross-connect switch selection, easy to install system debugging;
? capable of VLAN classification based PORT, this method does not affect the division of the remote device
? 802.1Q VLAN division, then this, the remote interface can be divided into the same VALN
? devices with Console port supports super terminal control device
Technical Parameters
Application Scheme
DataSheet Download
?
